MAGNASLOT  (Art No. 13130)
a complete Magnetic Machine Bed

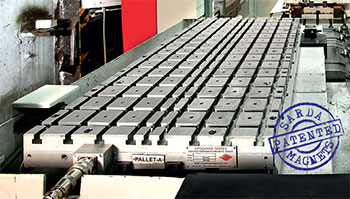

Magnaslot used as a pallet changer on a CNC machine
Features
  • The working face is machined from a single block of mild steel, wherein the poles are demarcated by making slots in the Top surface obviating the need to use filler material.
  • 100% safety to Original Machine Bed.
  • Universal Clamping directly on Magnetic Chuck.
  • 100% Leak Proof.
  • Very Rigid and Robust construction.
  • No Epoxy * No Expansion * No Deformation.
  • No Damage * No Burning.

Applications
  • Can be used for heavy duty milling operations.
  • Tee Slots in the working face of the chuck enables clamping Magnetically and/ or Mechanically all types of jobs be it ferrous or non-ferrous.
  • Universal Clamping directly on Electro Permanent Magnetic Chuck.
  • Patent Applied.
  • 2 in 1 Chuck - Magnetic & Mechanical Clamping.
  Available EPM Chuck MAGNASLOT
Clamping of Ferrous Jobs Can be Clamped magnetically. Can be Clamped magnetically.
Clamping of Non-Ferrous Jobs Can only be clamped using special fixtures or vices. Can be clamped on T Slots of MAGNASLOT.
Working Face Accuracy Due to excessive heat generation in some operations, Epoxy bulges. Solid Steel Top helps distribution of heat all over MAGNASLOT and retails accuracy.
  • A Complete Magnetic Bed for your Machine.
  • The operating voltage is 440 V AC for all chucks.
  • Can be designed for other operating voltages.
  • The Magnet can be designed for 220/380/400/480 VAC, 50/60 Hz.
  • Custom designed solutions also available.
