e-LIFT (Art No. 21101)
NdFeB Powerful Permanent Magnetic Lifter |
 |
| Features |
 |

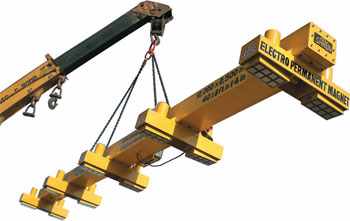

- EPMs suspended from fixed length spreader beam so that
the maximum range of plates are covered.
- Optimise the available work area by elimination of dunnage.
- Electronic control panel along with standby PCB card.
- Double Mag Cycle - this ensures the safe lifting of the load.
- Power Control – Magnetic Power can be varied in 4 steps
- Magnets can be selectively switched according to the length of the plate being handled.
- Smaller Plates – Only internal magnets are switched ON.
- Larger Plates – All the magnets are switched ON.
- Safety Interlock Key – to Magnetize/ Demagnetize 2 buttons are to be pressed simultaneously. This eliminates the chance of accidental operation of the magnet.
- “Inching” feature –When the magnet is switched ON, it
might lift more than a single plate. Inching is a feature, which when invoked reduces the magnetic power slowly
such that additional plates, if lifted, are dropped. This is used to make sure that only one plate is handled at a time.
- ADPREM – Accidental Demagnetization Prevention Mechanism. Disable the demagnetization cycle when
carrying load.
- Lamp Block – Displays the systems present state.
- Chain and Hanging Arrangement – made of grade 80 high strength steel along with bull ring.
|
|
| |
Applications
- magnetic lifter for handling of steel plates, blocks, rounds, press moulds and loading/unloading in machines.
- Commonly used near flame cutting and during fabrication.
- Can handle finished components without leaving behind any scratch marks, unlike binding and slinging.
- Can be used with spreader beam hanging multiple magnets to handle long plates/pipes/bars.
|
Benefits
- More effective use of available floor space by using magnetic lifter and eliminating gauging and increasing stacking height.
- Large and heavy work piece can be moved safely and easily by only one operator.
- Suitable for both flat and round components.
- Labour saving, time saving, can lift both round and flat components.
|
|
| |
Thickness |
Rated Capacity (Safe Lifting Weight or SWL) |
21101.08 |
21101.07 |
21101.06 |
21101.05 |
21101.04 |
21101.03 |
21101.02 |
21101.01 |
| |
(mm) |
5000 kg |
3000 kg |
2000 kg |
1000 kg |
500 kg |
300 kg |
200 kg |
100 kg |
T1 |
70 |
100% |
100% |
100% |
100% |
100% |
100% |
100% |
100% |
T2 |
60 |
90% |
T3 |
50 |
85% |
90% |
T4 |
45 |
80% |
85% |
90% |
90% |
T5 |
40 |
70% |
80% |
85% |
90% |
T6 |
35 |
- |
70% |
75% |
85% |
T7 |
30 |
60% |
65% |
80% |
80% |
T8 |
25 |
- |
55% |
70% |
90% |
T9 |
20 |
45% |
60% |
75% |
T10 |
15 |
- |
50% |
60% |
70% |
90% |
90% |
T11 |
10 |
- |
45% |
50% |
70% |
70% |
T12 |
5 |
- |
30% |
40% |
40% |
|
|
